Single Stainless Steel Foot Block 37-55
Single Stainless Steel Foot Block 37-55
Regular price
£1,892.97 GBP
Regular price
Sale price
£1,892.97 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

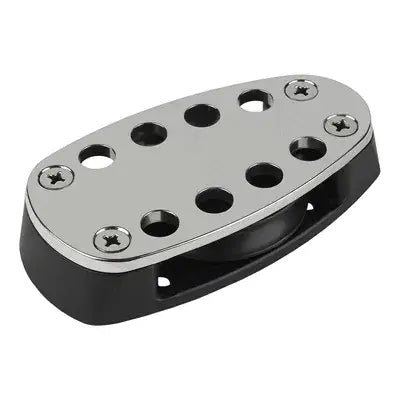

37-55 Single Stainless Steel Foot Block. Computer machined base features aluminum sheaves with our nomex(tm)/Teflon(tm) bearing and Delrin(tm) ball bearings for a low-friction high strength block. Stainless Steel Top plate is easily removed for installation. Wide computer machined aluminum base spreads loads over a wide area.
Boat Size Up To LOA 45', Disp. 30,000 lbs., Sail Area 900 sq. ft. (13.6 m, 13,636 kg, 83.6 m2), Sheave Dia. 4" (102 mm), Max Line 3/4" (19 mm), L 8-3/4" (222 mm), W 4-5/32" (106 mm), H 1-21/32" (42 mm), Fasteners (5) 3/8" FH (10 mm), SWL 7500 lbs. (3409 kg), Weight Alum. 4 lbs 11 oz. (1.52 g) - Consult Schaefer for proper Foot block sizing as loads may be extreme.
Boat Size Up To LOA 45', Disp. 30,000 lbs., Sail Area 900 sq. ft. (13.6 m, 13,636 kg, 83.6 m2), Sheave Dia. 4" (102 mm), Max Line 3/4" (19 mm), L 8-3/4" (222 mm), W 4-5/32" (106 mm), H 1-21/32" (42 mm), Fasteners (5) 3/8" FH (10 mm), SWL 7500 lbs. (3409 kg), Weight Alum. 4 lbs 11 oz. (1.52 g) - Consult Schaefer for proper Foot block sizing as loads may be extreme.
Share
SKU:37-55
