A stylish range of hinges fabricated from marine grade 316 stainless steel and electro-polished for a long lasting high finish. The pins of the hinges and hasps and staples are welded in position for added security.
Hinges Range Information:

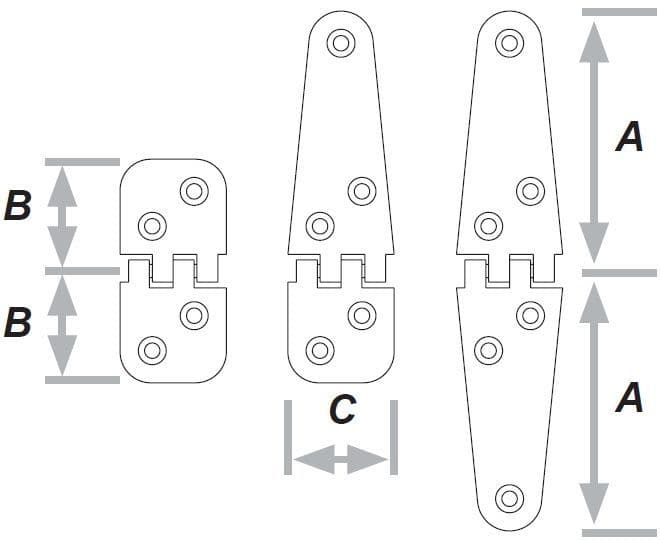

P/No DESCRIPTION DIM A DIM B DIM C 23-12 Back flap hinge 73mm - 33mm 23-13 Half back flap hinge 73mm 33mm 33mm 23-14 Stub hinge - 33mm 33mm 23-20 Back flap hinge 93mm - 39mm 23-21 Half back flap hinge 93mm 41mm 39mm 23-22 Stub hinge - 41mm 39mm
23-24 Back flap hinge 113mm - 52mm 23-25 Half back flap hinge 113mm 54mm 52mm 23-26 Stub hinge - 54mm 52mm 23-27 Back flap hinge 51mm - 20mm 23-28 Half back flap hinge 51mm 24mm 20mm 23-29 Stub Hinge - 24mm 20mm
