Schaefer

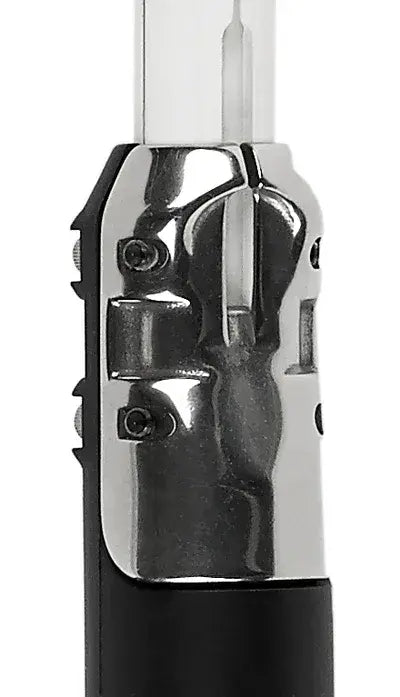

CF-500 Snapfurl
CF-500 Snapfurl
Regular price
£1,481.22 GBP
Regular price
Sale price
£1,481.22 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Snapfurl CF-500 represents the latest in quality Schaefer design and engineering. The CF-500 features a unique interlocking Round Geon (tm) PVC foil that allows for owner installation over your existing headstay with no modfications. The foils also lend themselves to trailering boats to ease the problems with mast raising or lowering.
The CF-500 features a reinforced injection molded Torque Tube and Upper Swivel for incredible strength and lightness. The lower drum and upper swivel feature a double race of Torlon(tm) ball bearings for easy reefing or furling.
Overall Length: 31'-1'" (9.5m)
Extrusion: One length single groove uses #5 luff tape
Bearings: 3/8" (9.5mm) Torlon (tm) ball bearings. (31) in upper swivel (40) in lower drum
Drum: 2" diameter
Line Capacity: 25' (7.6m) 1/4" (6mm) line. 19' (5.8m) 5/16" (8mm) line.
Overall Weight: 15.7 lbs
Shipping weight is 90 lbs due to oversized packaging. Free UPS Ground shipping in the continental US.
Contact Schaefer for a local dealer near you for your best price!
The CF-500 features a reinforced injection molded Torque Tube and Upper Swivel for incredible strength and lightness. The lower drum and upper swivel feature a double race of Torlon(tm) ball bearings for easy reefing or furling.
Overall Length: 31'-1'" (9.5m)
Extrusion: One length single groove uses #5 luff tape
Bearings: 3/8" (9.5mm) Torlon (tm) ball bearings. (31) in upper swivel (40) in lower drum
Drum: 2" diameter
Line Capacity: 25' (7.6m) 1/4" (6mm) line. 19' (5.8m) 5/16" (8mm) line.
Overall Weight: 15.7 lbs
Shipping weight is 90 lbs due to oversized packaging. Free UPS Ground shipping in the continental US.
Contact Schaefer for a local dealer near you for your best price!
