Budget Snap Shackles

These stainless steel shackles are a great budget friendly part to have in your tool box, with them having many different uses on the boat. We supply three types of stainless steel budget friendly shackles; the fixed snap shackle, the swivel snap shackle, and the jaw swivel snap shackle. They also come in a wide range of pin sizes from 6mm - 11mm.

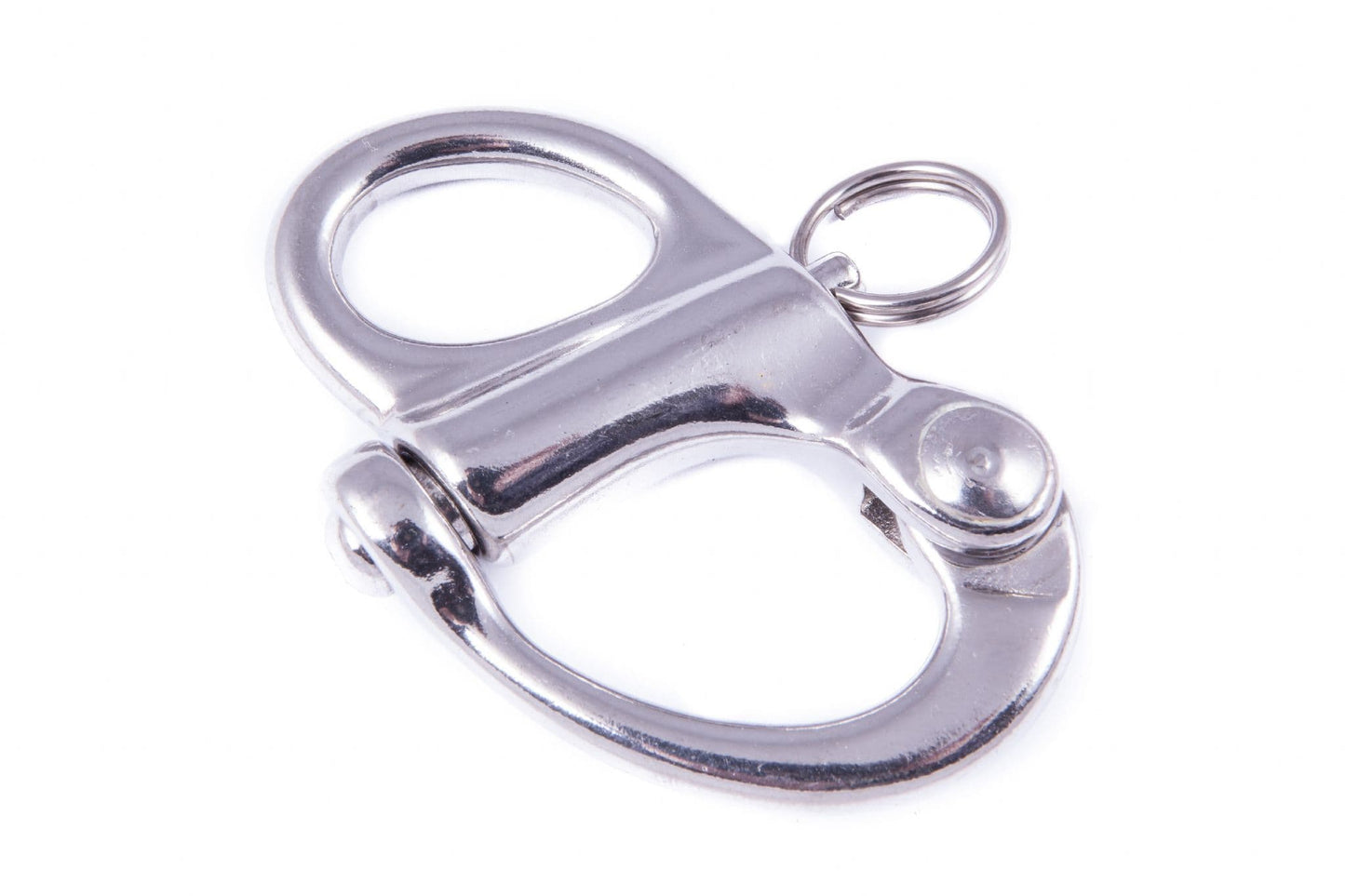

Fixed Snap Shackles Description:

P/No   Pin Dia  Overall length
41.09   6mm     55mm
41.08   8mm     70mm
41.07  1 1mm   100mm

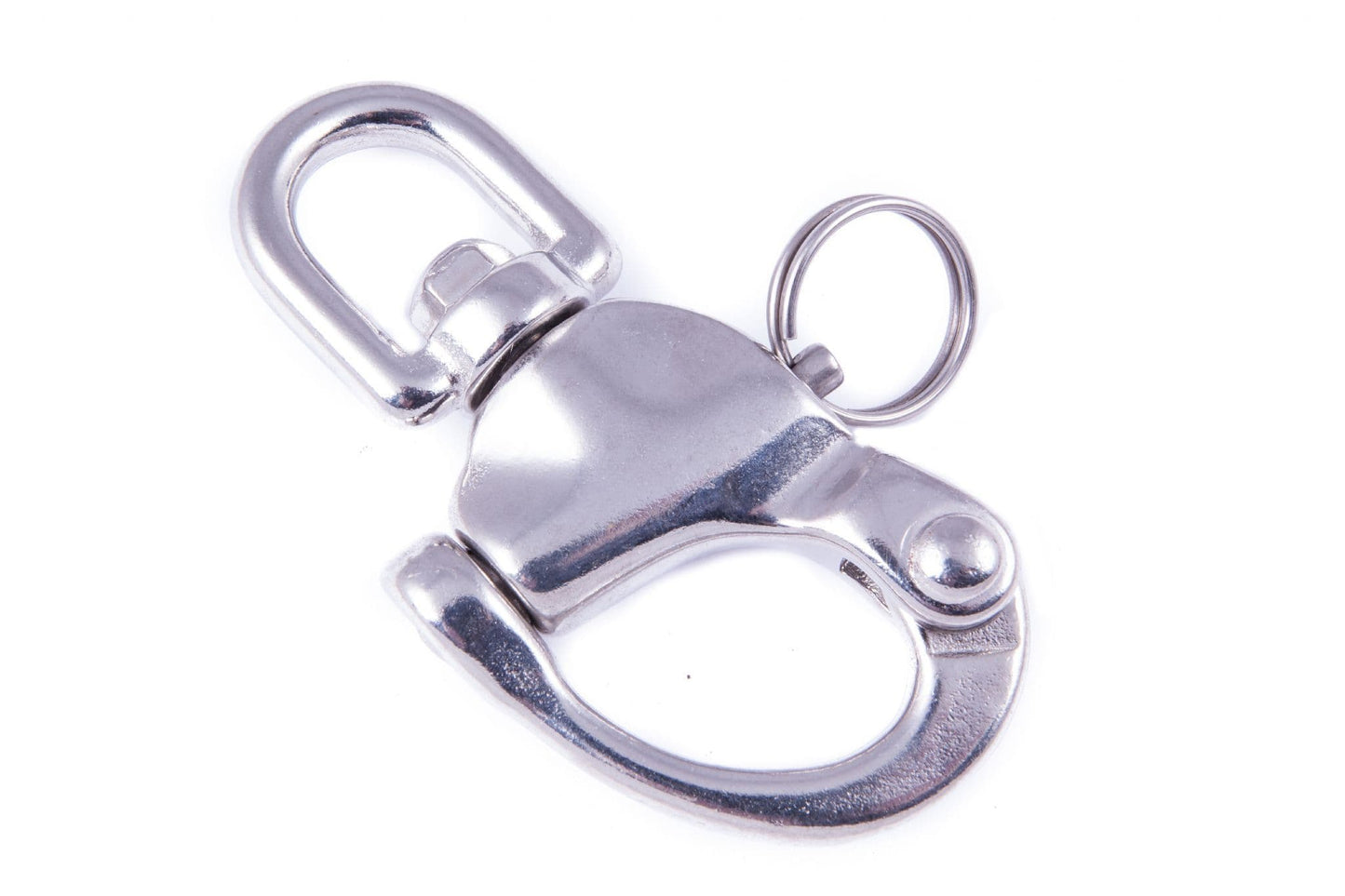

Swivel Snap Shackle Description:

P/No   Pin Dia  Overall length
41.06  6mm       70mm
41.05  8mm       90mm
41.04  11mm     125mm

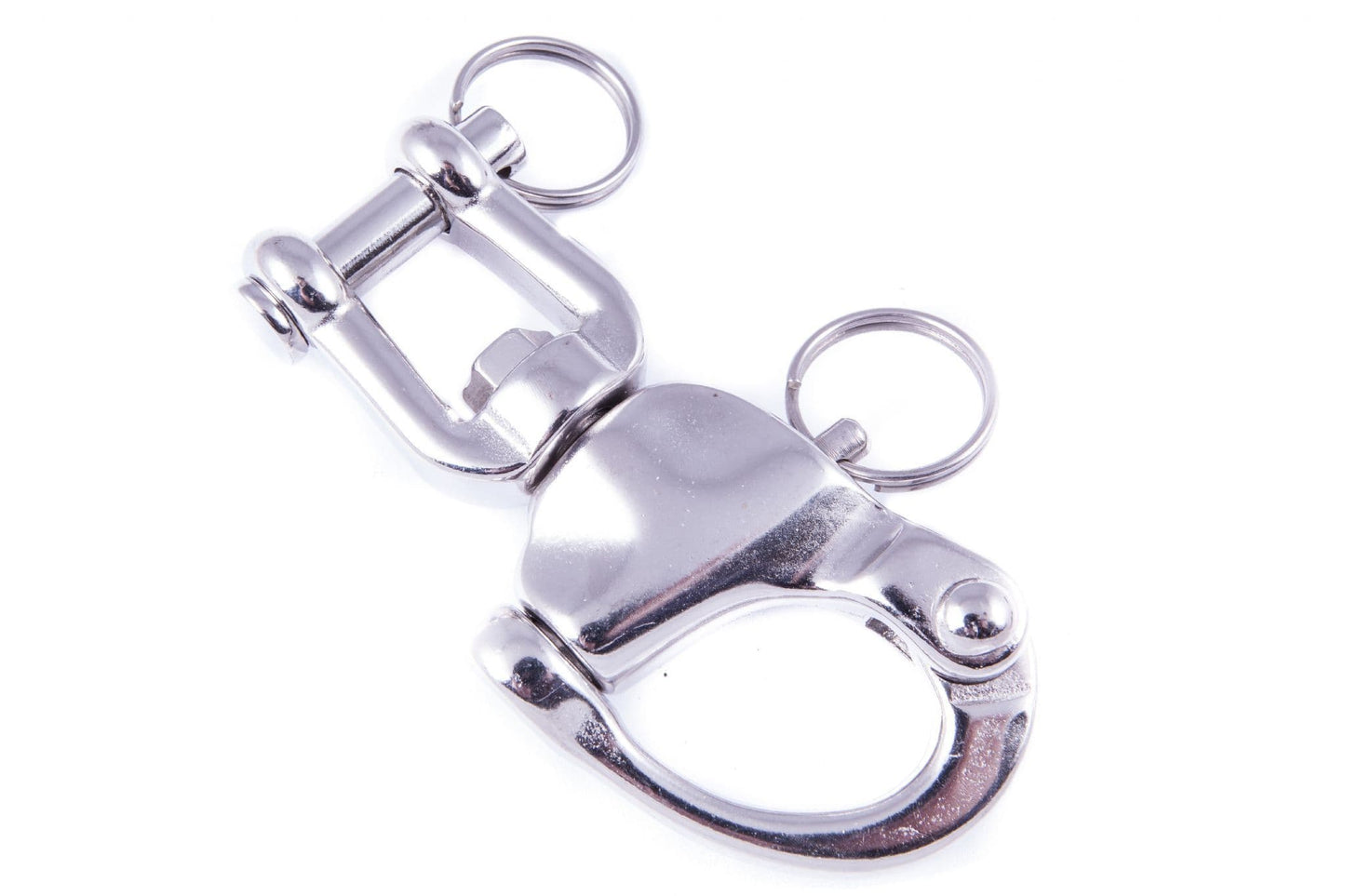

Jaw Swivel Snap Shackle with Clevis Pin Description:

P/No   Pin Dia   Overall length
41.10  6mm        70mm
41.11  8mm        85mm
41.12  11mm      130mm
