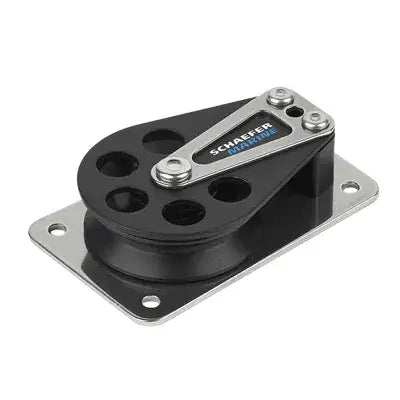

5 Series Flat Base/Alum Cheek/Alum Sheave 504-10

5 Series Cheek Block with anodized Aluminum cheek and aluminum sheave. Aluminum sheave runs on nomex(tm)/Teflon(tm) bearing ensuring smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Sheave Dia. 2" (51 mm), Max Line 7/16" (11 mm), L 3-5/8" (92 mm), W 2-7/32" (57 mm), H 7/8" (22 mm), Fasteners (4) #10 RH (5 mm), C/C 3" (76 mm), C/C (wide end) 1-5/8", C/C (narrow end) 1-3/8", SWL 1750 lbs. (795 kg), Weight 6.5 oz. (184 g), Max Line 7/16" (11mm)
